I came across an interesting problem at work. The company I work for has a dataset full of items, and they needed to find what the optimal combinations of these items would be. This sounds like a simple problem, but when you are dealing with large spreadsheets, this task may be a little daunting. No fear! There are multiple ways to tackle combination problems in R, and today I will showcase a few methods of doing so. Lets first make a sample data set.

​​data <- data.frame(
  category = c("Tshirt","Tshirt","Tshirt","Tshirt","Cup","Cup","Cup","Cup","Bag","Bag","Bag","Bag"),
  item = c("RedShirt",
"GreenShirt",
"BlueShirt",
"YellowShirt",
"CeramicCup",
"ClayCup",
"RubberCup",
"CoffeeCup",
"BigBag",
"SmallBag",
"MediumBag",
​"JumboBag"),
  price = c(10,12,8,15,7,5,8,10,25,15,20,30))

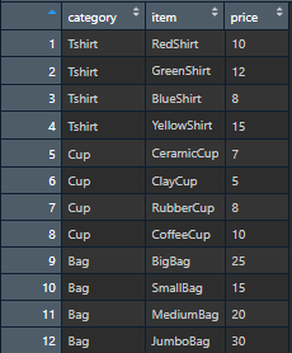

view(data)

This is obviously not a great set of data, but it is sufficient to make combinations! We are first going to use the expand.grid() function. You can check out the documentation for expand.grid() here. It is a very simple function that gets the job done by taking vectors to make combinations. Let's use it!

#To make combinations for each item in each category, we need to filter this data into separate vectors for the expand grid function. So lets make some filters.

Tshirt <- filter(data, category == "Tshirt")
Cup <- filter(data, category == "Cup")
Bag <- filter(data, category == "Bag")

#Now we can finally use the expand.grid() function.
combinations <- expand.grid(Bag$item,Cup$item,Tshirt$item)

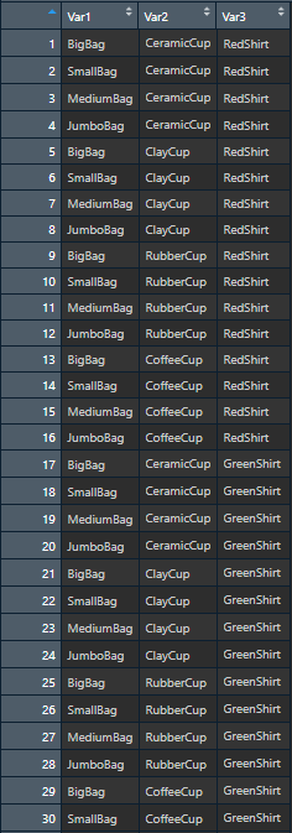

​view(combinations)
​

The benefit of using expand.grid() is that it's really easy to add many vectors (or columns) to use for combinations. As far as I know, something like outer() uses just 2 vectors (without some function). For example;
​ ​

#Let's make another example data frame.

​classes <- c("A+","A-","A","B+","B-","B","C+","C-","C","D+","D-","D","F")
#This is all the possible grades possible for classes... I am not sure if D+ or D- is a thing but let's try to see what's possible with these letters.
#here we are going to use Combn.
ncomb <- combn(classes, 5)
# 5 is the length of each combination, with is the useful part of combn. expand.grid makes the combination as long as the amount of vectors. n^z where "n" is the number of rows in the list and "z" is the amount of columns.

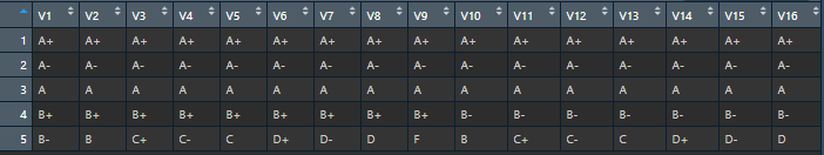

view(ncomb)

The drawback with combn is that it never makes dupes in each combination. So a combination will never be A A A B B B.

here is how it works with expand.grid()

n2comb <- expand.grid(data2,data2,data2)

#data2 has 13 rows. And since we are using data2 three times, the output will have 13^3 = 2917 cells.

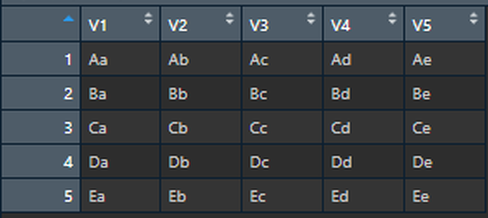

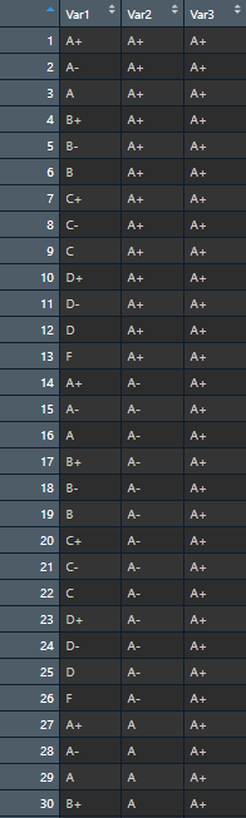

view(n2comb)

expand.grid has the advantage of doing this in a really simple way. It might get too large if you add too many columns though. If you have only 2 vectors you can also use outer()

​data3 <- c("A","B","C","D","E")
data4 <- c("a","b","c","d","e")
n3comb <- outer(data3, data4, FUN = "paste", sep = "")

Published on

Hypothesis

In the last post, I showed how density and population statistics alone may not be useful for finding how urban an area is. However, I started to talk about how hospitals may be a better indicator for this problem.

Hospitals can be measured by minimum distances from each other. If the minimum distance between one hospital to another is large, we can assume that the area between them has a small population. At the same time, we can also assume if the distance between two hospitals is small, that area probably has a higher population. Like I mentioned before, hospitals are very expensive to construct and maintain, so it would make sense for hospitals to only be built where the general populace can benefit from it. If the minimum distance from one hospital to another hospital is 30 miles, then it can be safe to assume that there isn't enough of a population between these two hospitals to warrant building another. We are going to run with this theory, and create a map that clusters hospitals relative to the minimum distances they have from each other.

Let's get to work!

library(plyr)
library(lubridate)
library(ggplot2)
library(dplyr)
library(data.table)
library(ggrepel)
library(tidyverse)
library(ggmap)
#Installation for ggmap package here. Make sure you register your google api key with register_google(key = " ")
library(sp)
library(rgdal)
library(geosphere)
library(readxl)
library(matrixStats)
library(magick)

​​

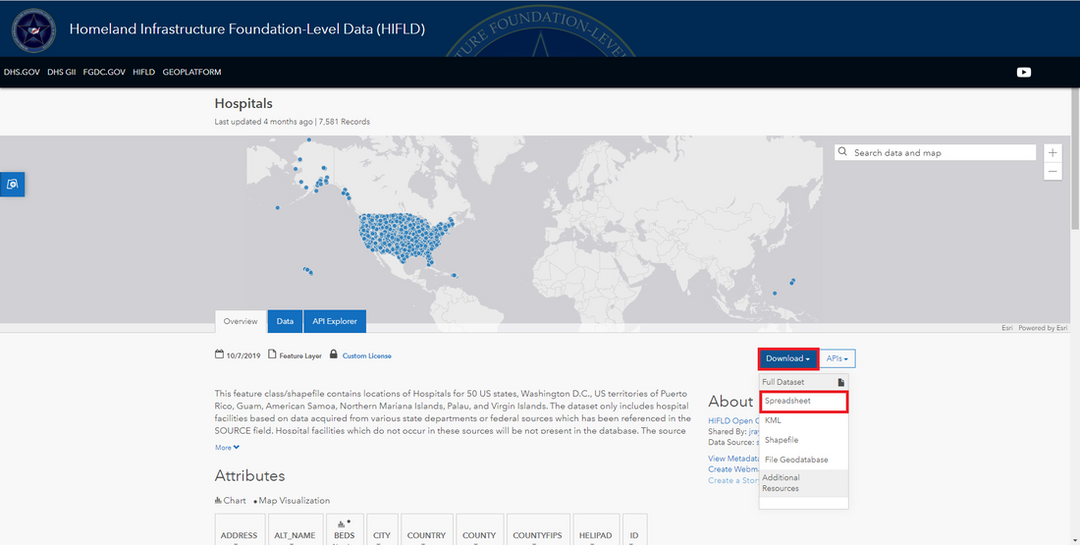

Next we are going to get some data. You can find data for hospitals here
Note: You can still do this project in the same way if you prefer to use another dataset. Just make sure your dataset is comprehensive enough and has latitude and longitude points.

Going the distance

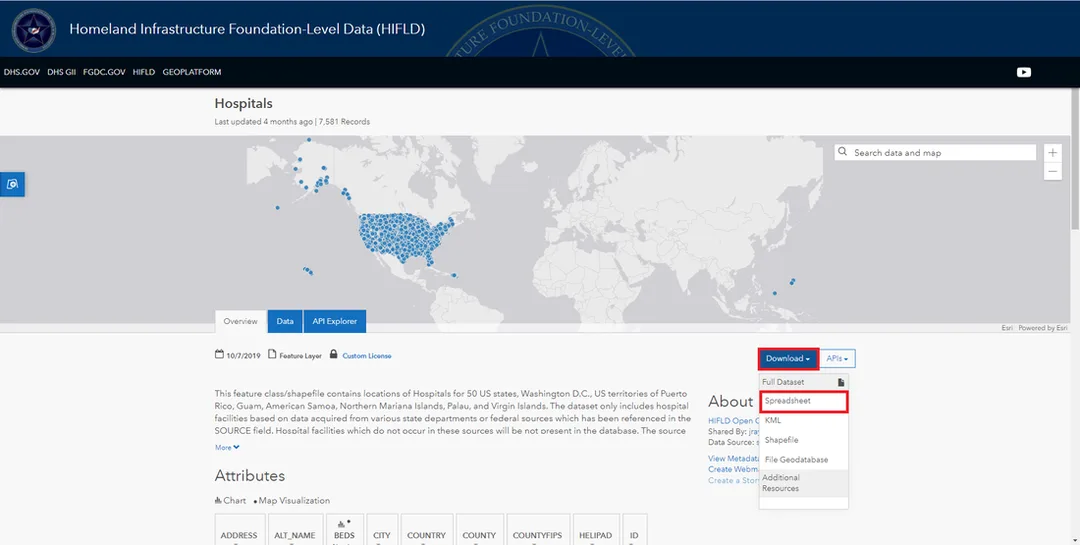

I think downloading this as a spreadsheet is the fastest way to get this into Rstudio. Lets save the file somewhere easy to locate on our computer.

Hospitals <- read_csv("C:/Users/Daniel/Desktop/Hospitals.csv")
​#If you are replicating this, make sure this goes to your file path
view(Hospitals)
x <- Hospitals$X
y <- Hospitals$Y
xy <- SpatialPointsDataFrame(
  matrix(c(x,y), ncol = 2),
  data.frame(ID = seq(1:length(x))),
  proj4string=CRS("+proj=longlat +ellps=WGS84 +datum=WGS84"))
mdist <- distm(xy)
colnames(mdist) <- Hospitals$ADDRESS
rownames(mdist) <- Hospitals$ADDRESS

#What this does is create a spatial point data frame. To explain this simply, latitude and longitude coordinates are not plotted on a flat surface- the earth is round (this isn't a debate), so we are trying to look for the distance between 2 points, we need some sort of reference, which is the globe in this instance.
#we take the X values (longitude) and the Y values (latitude) from the dataset and make it a spatial points data frame.
#What we do after this is use the distm function to calculate the distance between each latitude and longitude. You can find out more about distm here
#distm(x, y ) takes the distance between x and y. If y is missing, it is the same as x. So since x in this case is the dataframe 'xy', I am finding the distance from every point to every other point in the xy dataframe.
#Finally I name the rows and columns after the addresses of the hospitals. This gives me a table that looks like this:

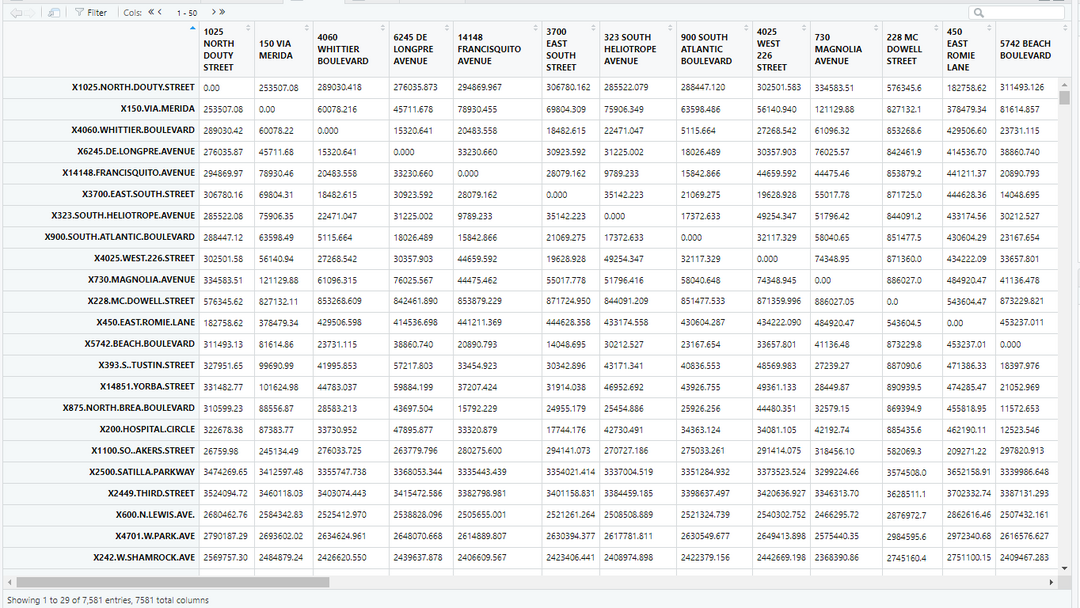

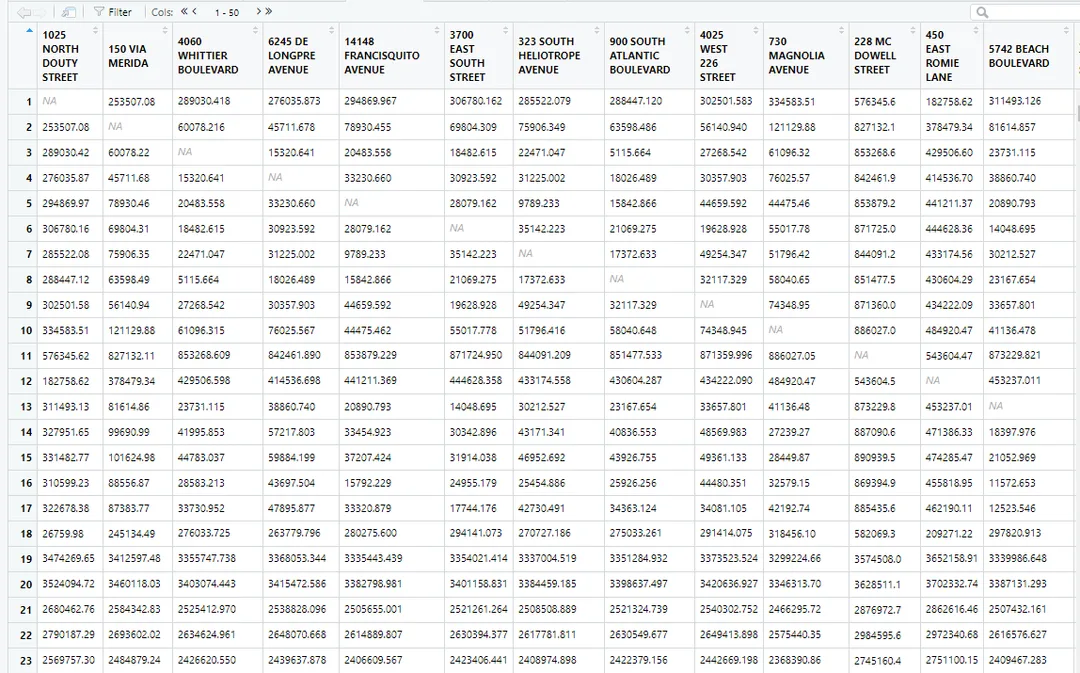

​Each column and row name is a hospital. The entries that have a 0 value are a hospital's distance from itself! However, if I want to find the minimum distance to a different hospital, I will have to ignore 0. To do this, lets replace all 0 values with NA.
I am also aware that all the rows have their names strangely written compared to the columns. I only named the rows to explain how this distance dataset works, I will only need to use colnames() for the next step. So in the next pictures you'll see the rows go back to their original numerical values. You can keep or delete rownames() if you'd like, I will not be using it in the next steps.

​

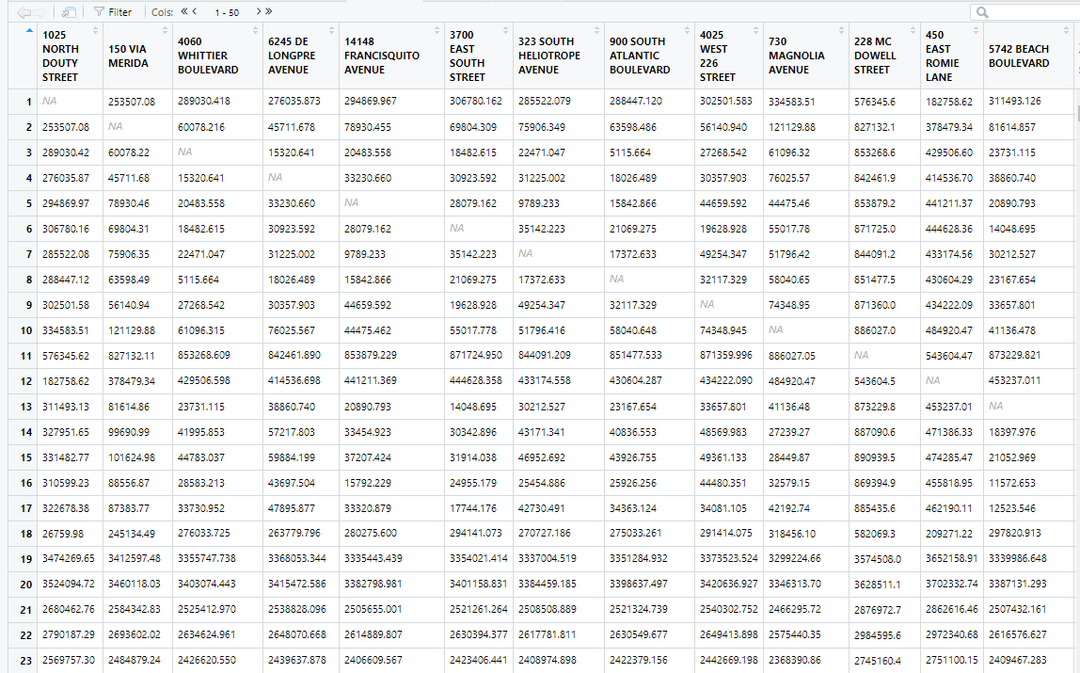

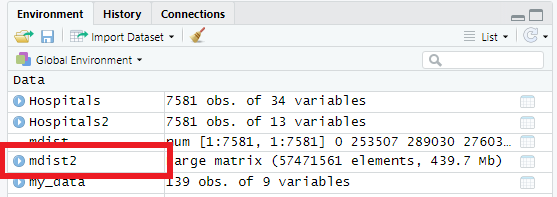

Now our new dataframe mdist2 has all 0 values as NA. You can check by clicking on the environment tab and clicking on mdist2.

​mdist2 <- mdist
is.na(mdist2) <- mdist2==0

Now we can properly find the minimum distance in each row. The numbers here are in meters.

​mdist3 <- rowMins(mdist2, na.rm = TRUE)
#view(mdist3)
mdist4 <- colnames(mdist2)[apply(mdist2,1,which.min)]
#view(mdist4)

Values <- c(1:7581)
Hospitals2 <- data.frame(Hospitals$X, Hospitals$Y, Hospitals$ADDRESS, Hospitals$NAME, Values, mdist3, mdist4, Hospitals$BEDS, Hospitals$TYPE,Hospitals$CITY,Hospitals$STATE,Hospitals$ZIP,Hospitals$STATUS)
names(Hospitals2) <- c("Longitude","Latitude","Address", "Name", "Values", "Distance","Closest_Address","BEDS","Type","City","State","ZIP","Status")
view(Hospitals2)

#mdist3 finds the minimum value of each row. However, I also want to know the column from which that value came from. So mdist4 uses which.min to tell me which column the minimum came from. You can find out how this is used in another example for maximum values here
#then I create a new dataset called Hospitals2. I use mdist3 and 4 and insert them into this dataset. Now I have a column that provides the closest hospital address, and also provides the distance to that hospital. Great! Now I am ready to cluster these hospitals relative to their distances.

Mapping

The next step is to start plotting these hospitals around a map! I am a sucker for maps and visualizing data using maps. We are going to use the ggmap package, so make sure you have the API key registered. If you have not yet installed ggmap, I suggest you do that by scrolling up and reading the instructions for ggmap in the libraries section.
If you have the package, let's get started! A good place to familiarize yourself with ggmap is this excellent cheat sheet you can download here. You can also check out this blog for a great tutorial on ggmap.

Lets just start off by plotting every hospital based on the latitude and longitude points.

​p <- ggmap(get_googlemap(center = c("United States"),
                         zoom = 4, scale = 2,
                         maptype ='terrain',
                         color = 'color'))
p + geom_point(aes(x = Longitude, y = Latitude), data = Hospitals2, size = 0.5) +
  theme(legend.position="bottom") +
  windows()

#Notice how I used get_googlemap and then created a center called United States, which gets a map using google's service. Google recognizes that I want a map of the united states.
#You can use get_googlemap(center =c("")) just like you would go into google maps and search for a location.

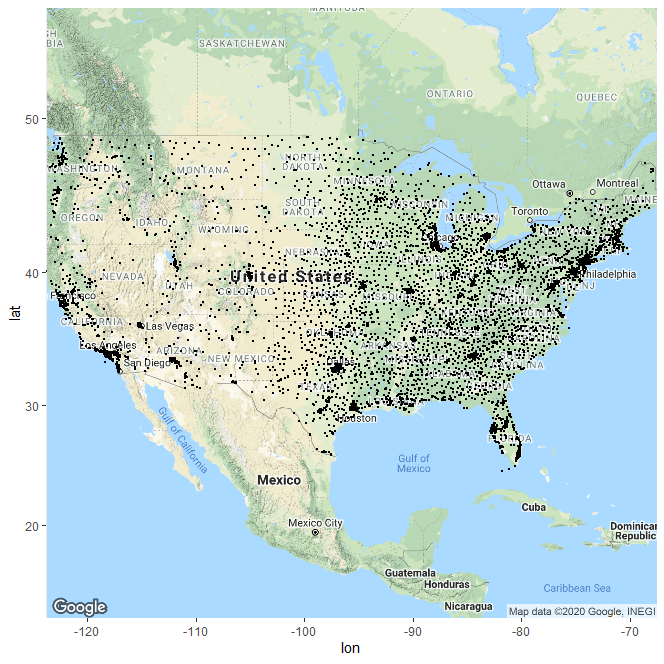

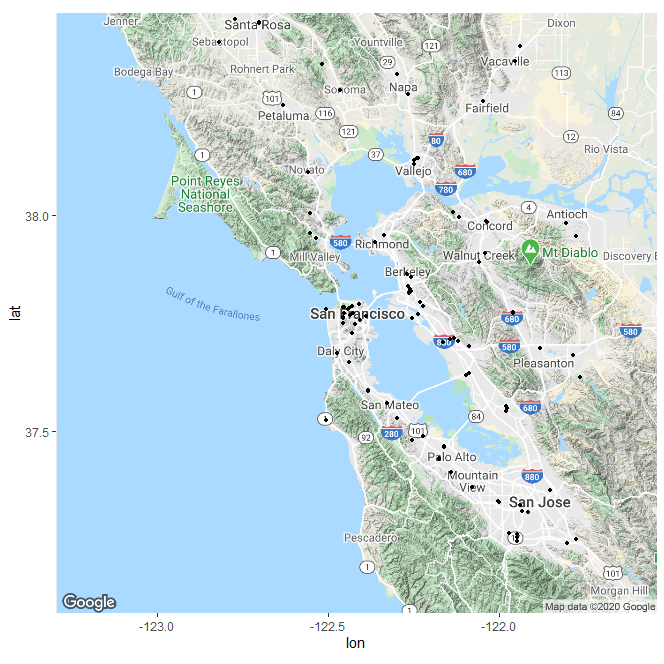

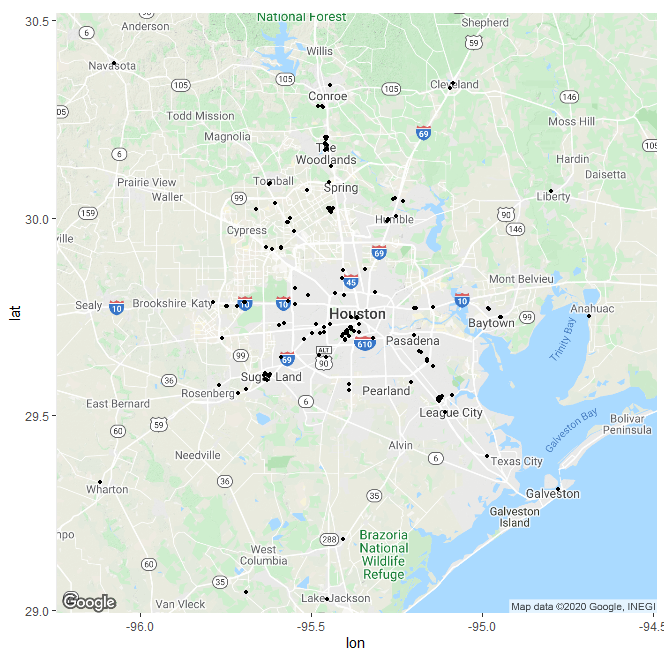

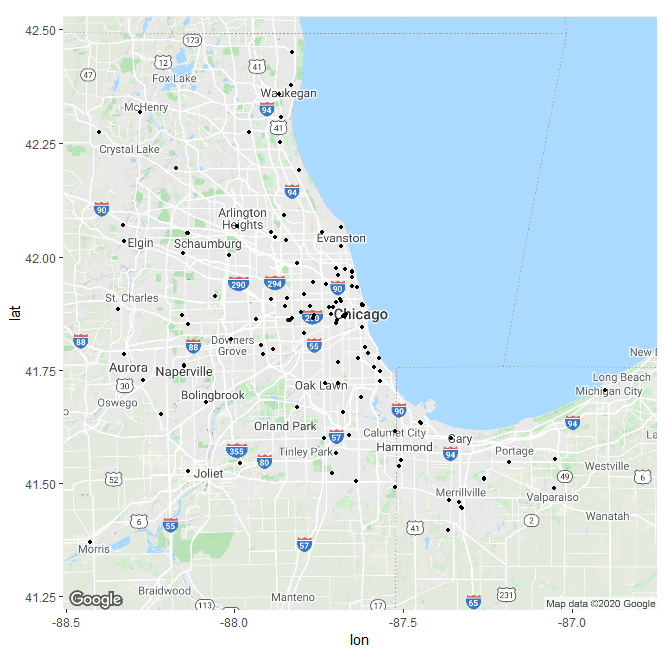

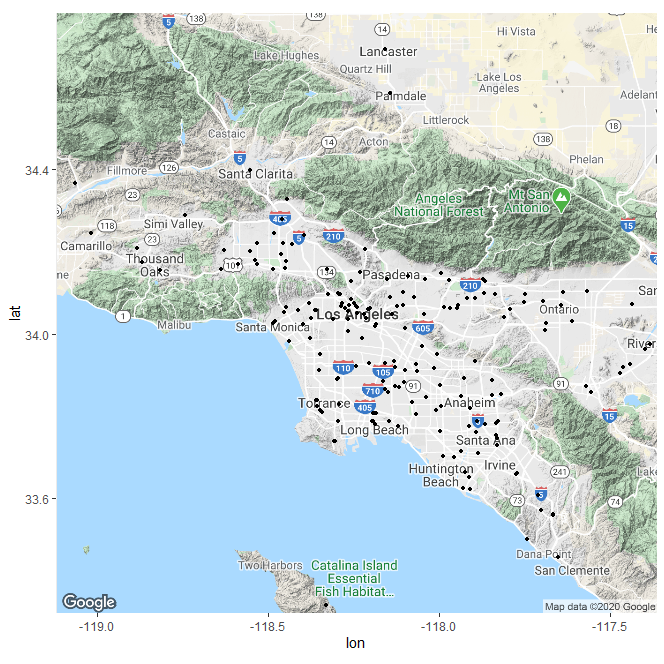

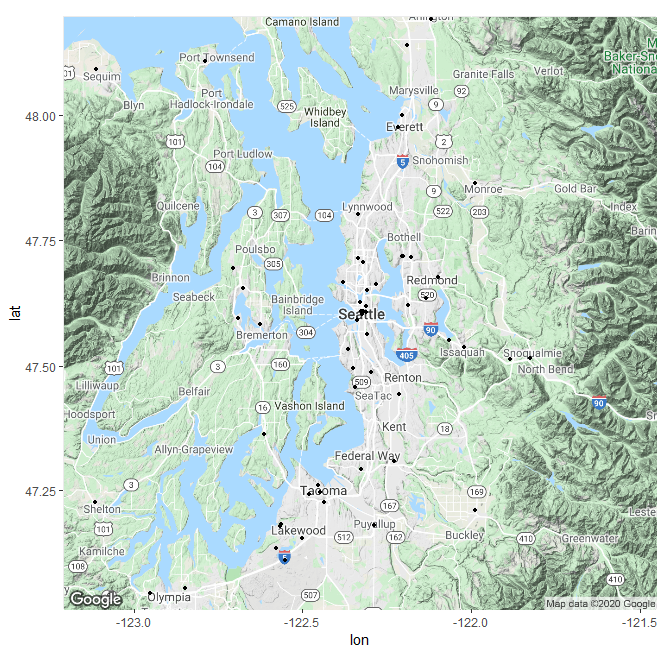

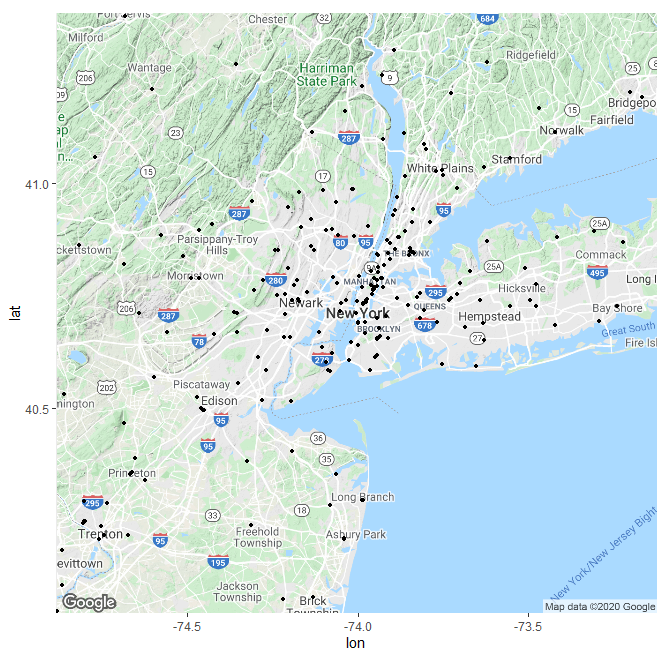

This is a map of every hospital location on a map of the United States. We can clearly see how hospitals are clustered closer together near cities, but we are going to sort these points by distance
Next we want to give these latitude and longitude points some aesthetics. These points only indicate where the hospitals are located. So what is our goal here?

If we want to sort the hospitals in relation to their distances, we need to set up some parameters for what these distances should be. I based my parameters from measuring the distances between various hospitals in the country from rural areas and urban areas. Remember; this is only a hypothesis and not meant to be exact.
​​

Hospitals3 <- Hospitals2 %>% mutate(Classification = case_when(Distance >= 0 & Distance <= 300 ~ "Hospital Center",
                                                 Distance >= 300 & Distance <= 3000 ~ "Very Urban",
                                                 Distance >= 3001 & Distance <= 12000 ~ "Urban",
                                                 Distance >= 12001 & Distance <= 20000 ~ "Suburban",
                                                 Distance >= 20001 & Distance <= 30000 ~ "Rural",
                                                 Distance >= 30001 & Distance <= 300000 ~ "Very Rural"))

Hospitals_10_Urban <- filter(Hospitals3, Distance >= 0 & Distance <= 3000, BEDS >=0, Status == "OPEN")
Hospitals_8_Urban <- filter(Hospitals3, Distance >= 3001 & Distance <= 12000,BEDS >=0,Status == "OPEN")
Hospitals_6_Suburb <- filter(Hospitals3, Distance >= 12001 & Distance <= 20000,BEDS >=0,Status == "OPEN")
Hospitals_4_Rural <- filter(Hospitals3, Distance >= 20001 & Distance <= 30000,BEDS >=0,Status == "OPEN")
Hospitals_2_Very_Rural <- filter(Hospitals3, Distance >= 30001 & Distance <= 300000,BEDS >=0,Status == "OPEN")

#Distance is in meters. For now, I made all the hospitals under 300 meters into a "Hospital center". There are many hospitals within 300 meters of each other that are just part of the same hospital center . I will implement them later.
#Many Hospitals in the dataset have beds equal to -999. I assume it is an NA value. So I kept all hospitals with beds over 0.
#Now we categorized each distance as a hypothetical scale for how urban an area is. We map this out and see how it looks like

m <- ggmap(get_googlemap(center = c("Insert Place Here"),
                         zoom = 8, scale = 2,
                         maptype ='roadmap',
                         color = 'color'))
m + geom_point(aes(x = Longitude, y = Latitude, size = BEDS, fill = Classification), pch = 21, data = Hospitals_10_Urban) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_8_Urban) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_6_Suburb) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_4_Rural) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_2_Very_Rural) +
  theme(legend.position="right") +
  labs(size = "Beds", fill = "Hypothesized Urbanicity")+
  scale_fill_discrete(breaks=c("Hospital Center","Very Urban","Urban","Suburban","Rural","Very Rural"))+
  scale_size(breaks = c(100,200,300,400,500,1000), range = c(1,6))+
  windows()

#You can try out any area using ggmap and see how it clusters yourself.

​

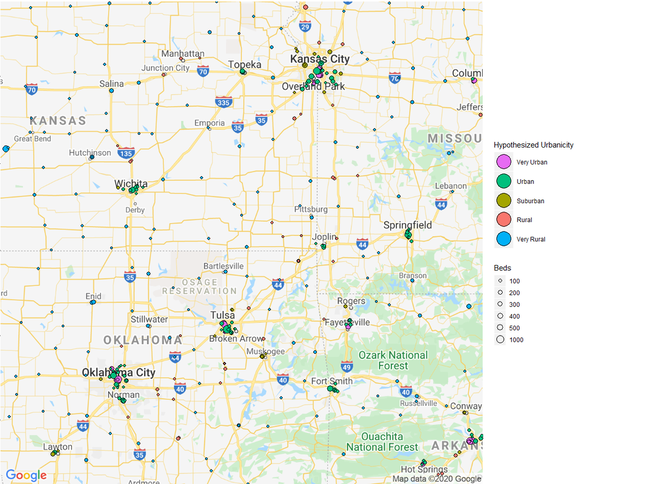

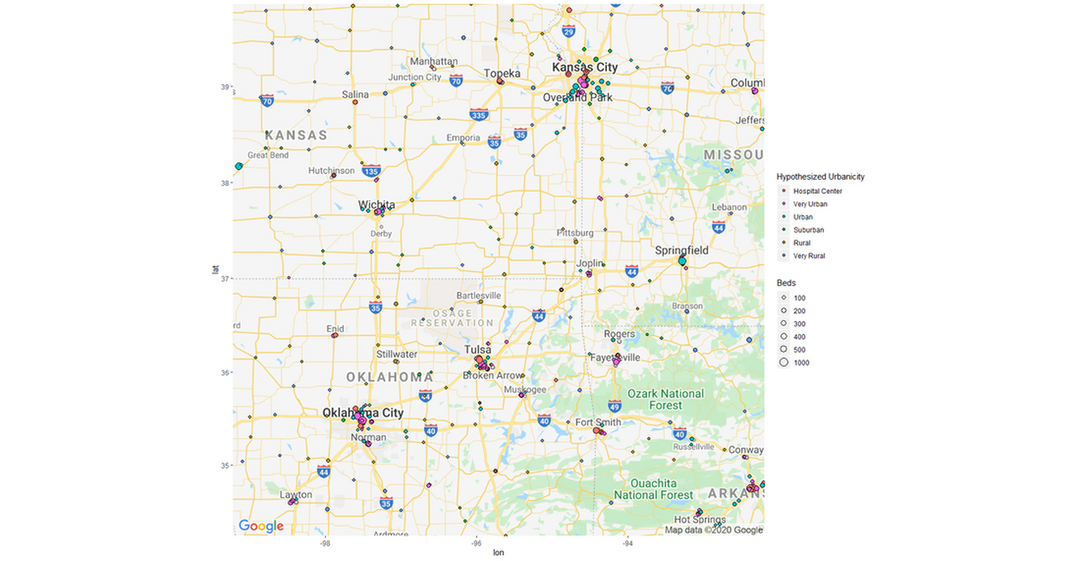

This is a map of the hospitals around Kansas. I figured this method of clustering comes with drawbacks (It is pretty messy to start off). Wichita on the top left (for example) has points that make it seem very urban. This is because the method of clustering only takes a single minimum distance into account. There might be a case where the points are so close to each other, but there is nothing around them. This might make small towns with one or 2 hospitals seem like urban centers.

However, since we have a distance matrix in mdist, we can take the lowest "n" values in each row, and average out the distances. That way, we could rely on "n" closest hospitals instead of just one.

​mdistnew <- t(apply(mdist2, 1, sort))[, 1:5]

This creates a new table called mdistnew. We use t(apply()) to do this for every row. The sort function inside the apply function sorts the values in each row in a certain way. In this case, [, 1:5] sorts it from the first smallest number in value to the 5th smallest number. If I wanted to get the max, I would take the tail end value of the last row, and the nth number below that (in this case the top values would look like [, n:7581]).

I only used the 5 smallest distances in this example, but you can try as many as you'd like by changing 5 in the above code to a higher number. Now all I do is create a new data frame using mdistnew.

colnames(mdistnew)[1:5]<- c("distance1","distance2","distance3","distance4","distance5")
#view(mdistnew)
mdistnew <- as.data.frame(mdistnew)
mdistnew$mean = (mdistnew$distance1+mdistnew$distance2+mdistnew$distance3+mdistnew$distance4+mdistnew$distance5)/5

Values <- c(1:7581)
Hospitals4 <- data.frame(Hospitals$X, Hospitals$Y, Hospitals$ADDRESS, Hospitals$NAME, Values, mdist3, mdist5, Hospitals$BEDS, Hospitals$TYPE,Hospitals$CITY,Hospitals$STATE,Hospitals$ZIP,Hospitals$STATUS,mdistnew)
names(Hospitals4) <- c("Longitude","Latitude","Address", "Name", "Values", "Distance","Closest_Address","BEDS","Type","City","State","ZIP","Status", "DistanceMinimum", "Distance2","Distance3","Distance4","Distance5","MeanDistance")
#view(Hospitals4)

#I used DistanceMinimum for simplicity, you can name the columns whatever you want
#mdistnew was converted to a dataframe so I could join it with other columns. If you do not convert it, you'll receive an error message.
#mdistnew$mean = ... creates a new column based off the mean of all distances. I basically added all the new distance columns and divided by the amount (5* in this case)

If we just used the minimum distance from one hospital to another (like we did with Hospitals2), the lowest value would be just half a meter. This would label the area as a "Hospital Center". Also, you might have noticed the distances in some rows are duplicated, this is because hospitals that are only meters apart from each other share the same minimum distance.

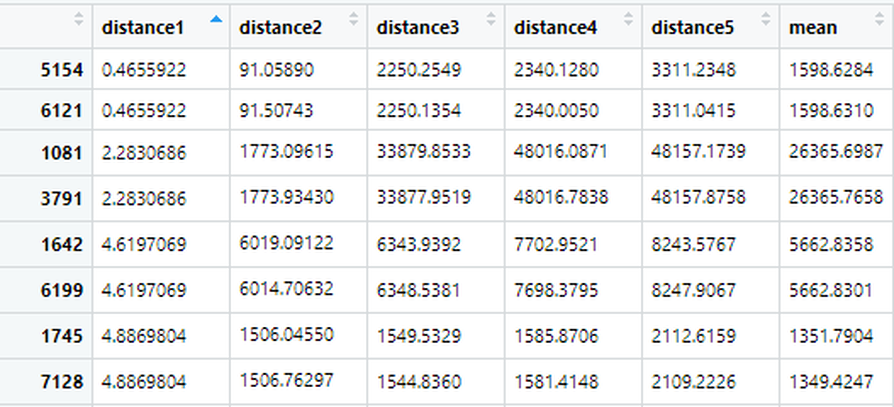

In this case, we now have 5 distances.If we check row 5154, the first 2 distances are only .4 and 90 meters from another hospital. Using the previous method, this hospital would be labeled as "Very Urban" or a "Hospital center". However, now we can use 5 distances to gauge just how close a hospital actually is from other hospitals in the area.

After looking at 5 distances in row 5154, we can say that the actual average distance to another hospital is around 1600 meters. This number can obviously change depending on how many distances we use.

Hospitals4 <- Hospitals4 %>% mutate(Classification = case_when(MeanDistance >= 0 & MeanDistance <= 3000 ~ "Very Urban",
                                                               MeanDistance >= 3001 & MeanDistance <= 12000 ~ "Urban",
                                                               MeanDistance >= 12001 & MeanDistance <= 20000 ~ "Suburban",
                                                               MeanDistance >= 20001 & MeanDistance <= 30000 ~ "Rural",
                                                               MeanDistance >= 30001 & MeanDistance <= 300000 ~ "Very Rural"))

#In the previous example, I labeled any hospitals with a minimum between 0 and 300 meters as "Hospital centers." Now we don't need to do that! We can comfortably go from 0 to 3000 meters (3km) without worrying about small distances skewing the cluster.

Hospitals_10_Urban <- filter(Hospitals4, MeanDistance >= 0 & MeanDistance <= 3000, BEDS >=0, Status == "OPEN")
Hospitals_8_Urban <- filter(Hospitals4, MeanDistance >= 3001 & MeanDistance <= 12000,BEDS >=0,Status == "OPEN")
Hospitals_6_Suburb <- filter(Hospitals4, MeanDistance >= 12001 & MeanDistance <= 20000,BEDS >=0,Status == "OPEN")
Hospitals_4_Rural <- filter(Hospitals4, MeanDistance >= 20001 & MeanDistance <= 30000,BEDS >=0,Status == "OPEN")
Hospitals_2_Very_Rural <- filter(Hospitals4, MeanDistance >= 30001 & MeanDistance <= 300000,BEDS >=0,Status == "OPEN")

#You can change the names that I used "Hospitals_10_Urban" to something else. I kept it the same throughout to make it easy to replicate this code.
#Now the parameters are based off an average.

z <- ggmap(get_googlemap(center = c(lon = -73.987086, lat = 40.745014),
                         zoom = 9, scale = 2,
                         maptype ='roadmap',
                         color = 'color'))
z + geom_point(aes(x = Longitude, y = Latitude, size = BEDS, fill = Classification), pch = 21, data = Hospitals_10_Urban) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_8_Urban) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_6_Suburb) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_4_Rural) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_2_Very_Rural) +
  theme(legend.position="right") +
  guides(fill = guide_legend(override.aes = list(size=10))) +
  labs(size = "Beds", fill = "Hypothesized Urbanicity")+
  scale_fill_discrete(breaks=c("Very Urban","Urban","Suburban","Rural","Very Rural"))+
  scale_size(breaks = c(100,200,300,400,500,1000), range = c(1,6))+
  windows()

#guides(fill = guide_legend(override.aes = list(size=10))) is a function to make the pch symbols in the legend larger. I find this really helpful for making legends visible

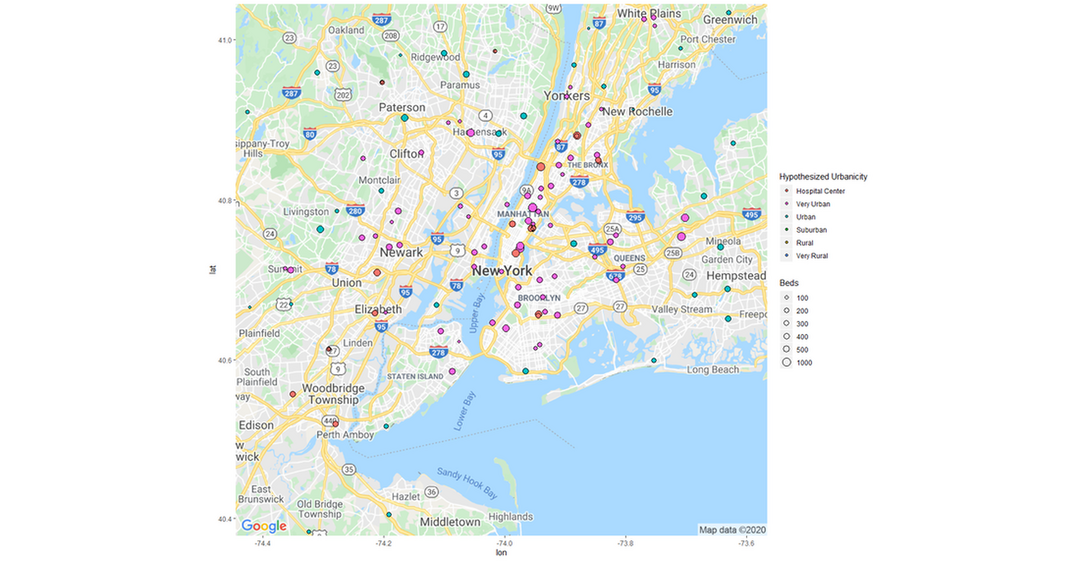

Updated Version

Old Version

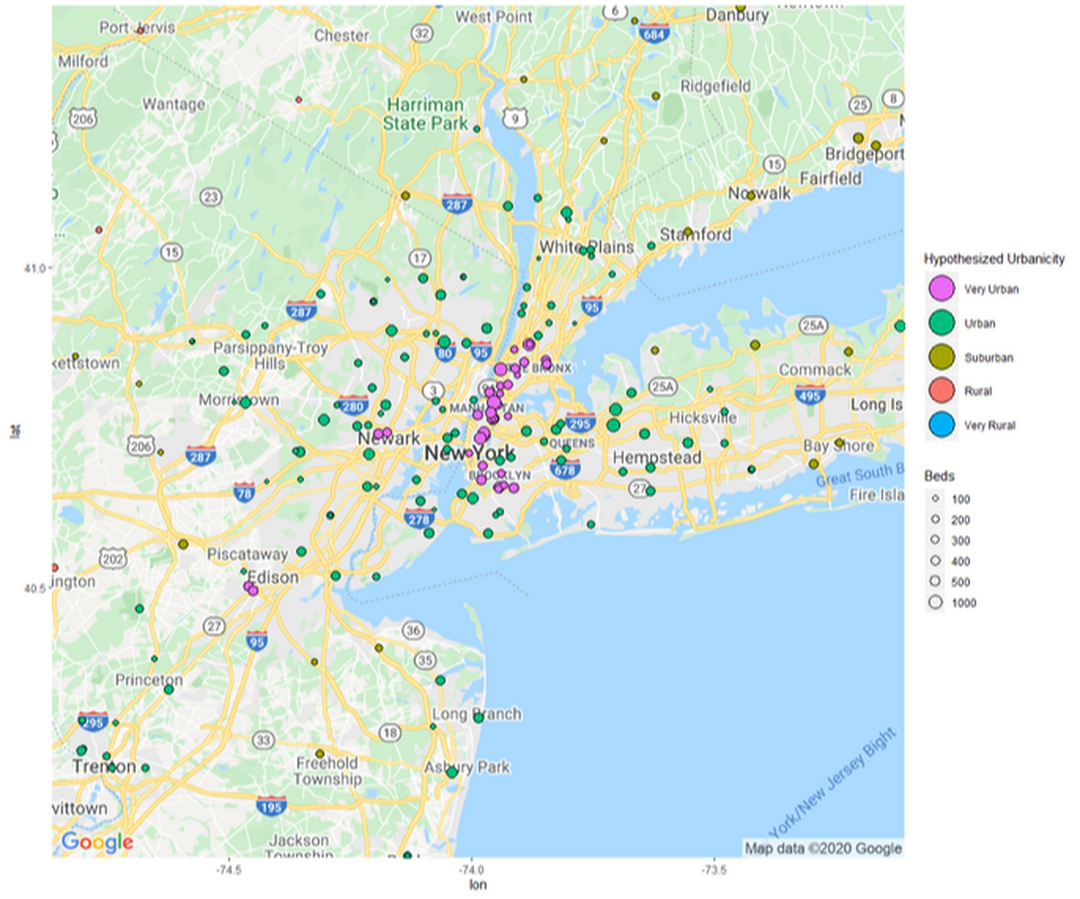

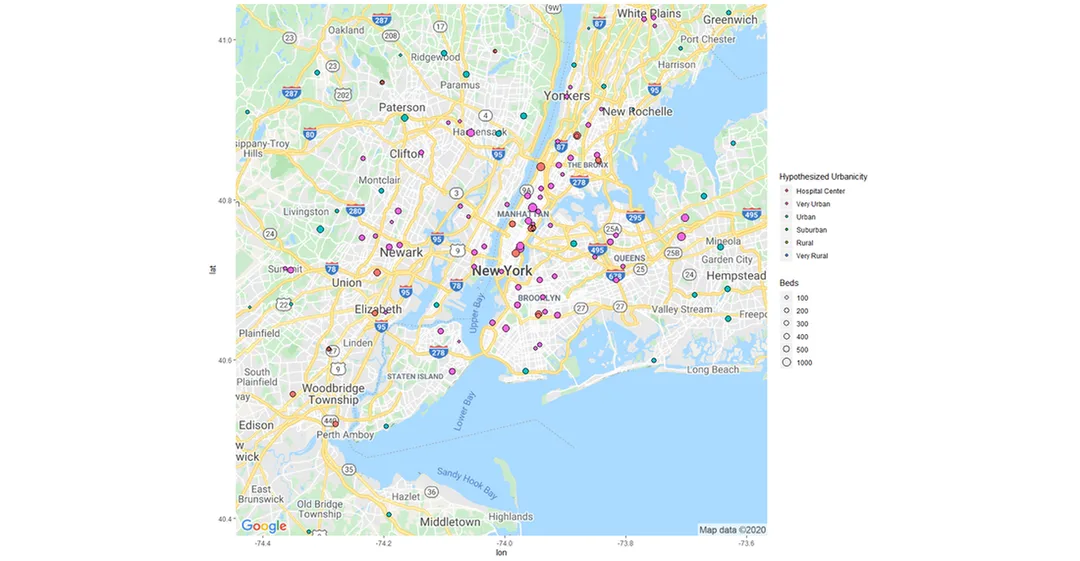

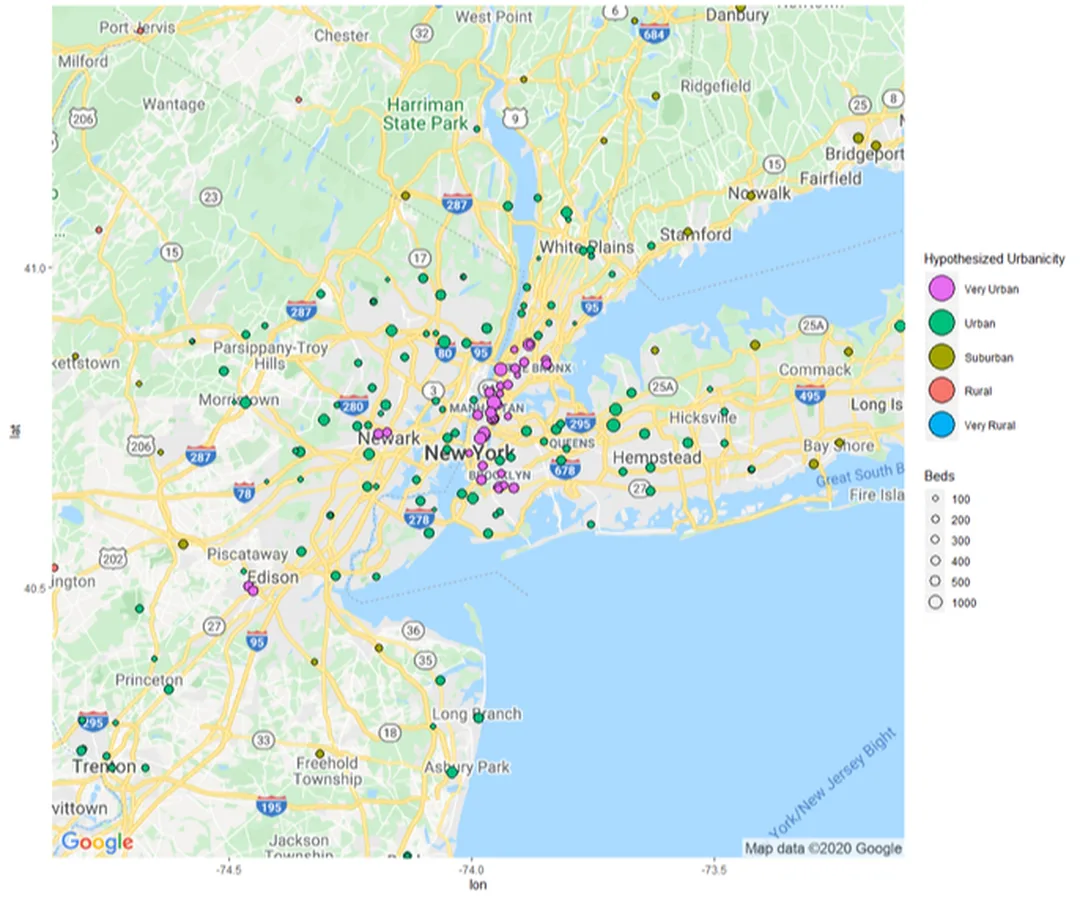

We can clearly see the difference. Manhattan has all purple dots because all the hospitals are pretty close to each other, and the parameters managed to make Brooklyn and Queens appear less urban than Manhattan (as it should be). You can see how getting a "Very Urban" status is difficult because it will require all 5 nearby hospitals to average under 3000 meters

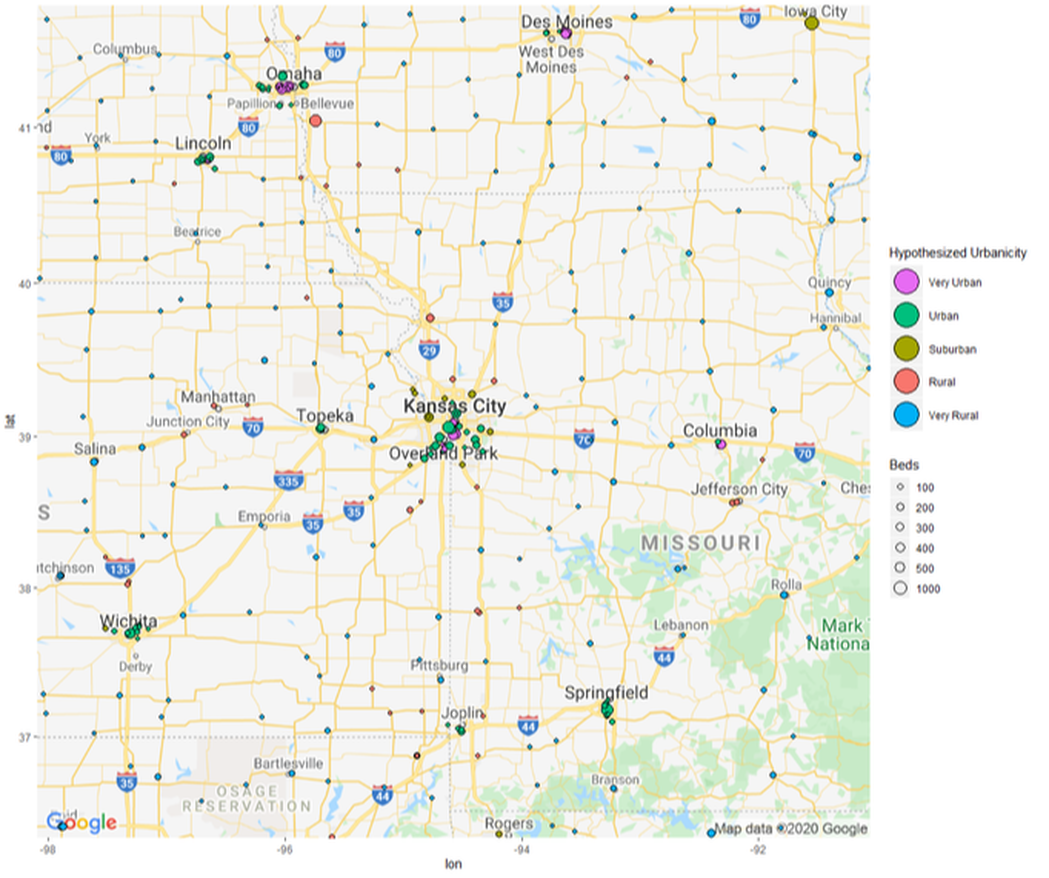

​z <- ggmap(get_googlemap(center = c("North West America"),
                         zoom = 7, scale = 2,
                         maptype ='roadmap',
                         color = 'color'))
z + geom_point(aes(x = Longitude, y = Latitude, size = BEDS, fill = Classification), pch = 21, data = Hospitals_10_Urban) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_8_Urban) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_6_Suburb) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_4_Rural) +
  geom_point(aes(x = Longitude, y = Latitude, size = BEDS,fill = Classification),pch = 21, data = Hospitals_2_Very_Rural) +
  theme(legend.position="right") +
  guides(fill = guide_legend(override.aes = list(size=10))) +
  labs(size = "Beds", fill = "Hypothesized Urbanicity")+
  scale_fill_discrete(breaks=c("Very Urban","Urban","Suburban","Rural","Very Rural"))+
  scale_size(breaks = c(100,200,300,400,500,1000), range = c(1,6))+
  windows()

Many points that are closer to each other are no longer labeled as urban. There are always exceptions, and I only tried 5 distances so far. However, we can see how points very close together can still be considered rural or suburban rather than urban.
Next up I will be finding new ways to improve this, and I will look over how various "n" values for distances effect the output of the plots. Cheers!
